Dual Seal Skirt Board
【Classification】Conveyor Skirt Board
【Product Description】Dual layer structure, the inside layer is used to avoid material spillage, and the outside layer is used to prevent dust flying around. ......
Consultation- Product Details
- Online Booking
● Application:
Used for the seal between belt conveyor and chute.
● Construction features:
1. Dual layer structure, the inside layer is used to avoid material spillage, and the outside layer is used to prevent dust flying around.
2 .A wear resistant polyurethane strip layer is spliced on the parts which may touch the belt to lengthen the service life and avoid belt damage.
3 .The clamp units make installation more convenient and faster.

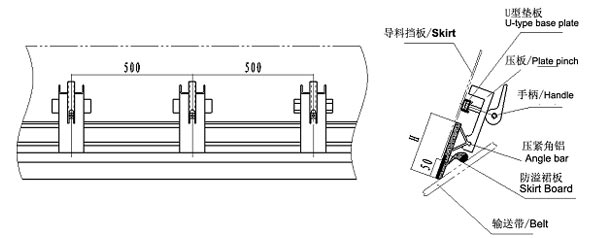

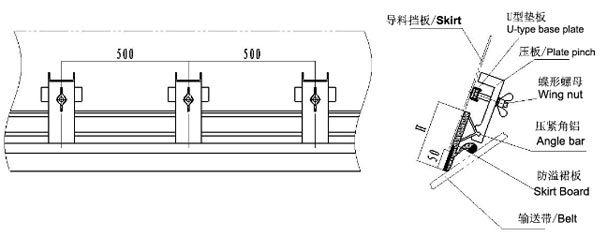

● Installation diagram:
Sealing system between conveyor belt and chute
● Specifications:
| Product NO | Product Name | Product Dimension（mm） | Remark |
| DB-YQB150 | Y-type skirt board | Height H=150 | |
| DB-YQB190 | Y-type skirt board | Height H=190 |
Dual Seal Skirt Board
Price：
inquiry
Starting Quantity：
≥1件
Keywords：
Description：
Dual layer structure, the inside layer is used to avoid material spillage, and the outside layer is used to prevent dust flying around.
